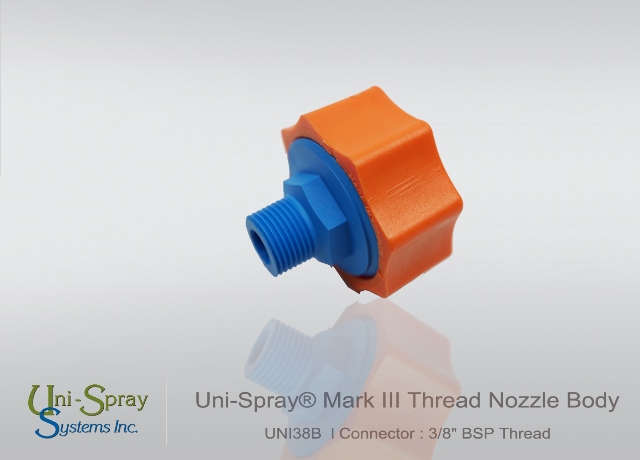

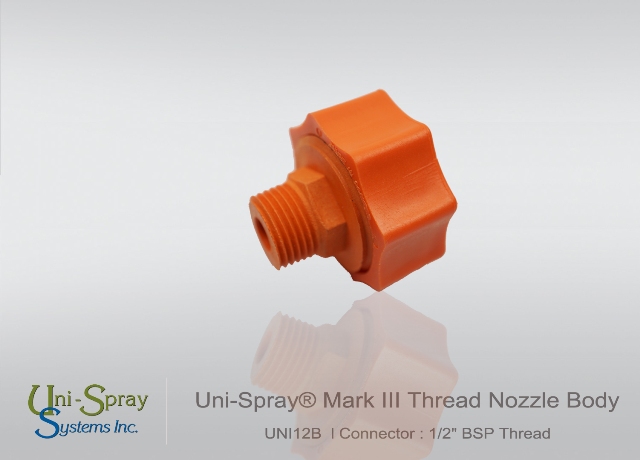

Mark-III Thread Base Body
- Mark 3 thread base designed for applications where threaded nozzles may currently be used.
- Nozzle body allows interchangeable nozzle tips full cone, hollow cone and flat spray which directional adjustment of the nozzle tip anywhere within a 45° included angle.

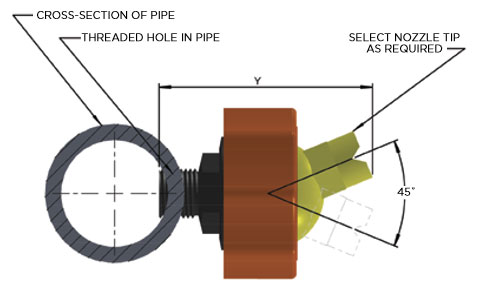

Major Dimensions
Features
- Inexpensive
- Corrosion resistant
- Impervious to most chemicals
- Excellent heat resistance
- Injection-molded from custom- blended polypropylene
- Several thread sizes available
- Resists clogging
- Directional adjustment of nozzle anywhere within 45°
- Tips available in Full Cone, Hollow Cone, Flat Spray and Quick-Change configurations
- Tips available with Threaded Ball Connections in 1/8", 1/4", 3/8" and 1/2" NPT or BSPT threads
- Mark 3 nozzle bases allow the use of Adjustable Spray Nozzles in applications where threaded nozzles may currently be used
- Mark 3 bases also allow an Adjustable Nozzle where pipe diameters are larger than 2" or smaller than 1" by fitting with a threaded hole drilled in that pipe
Ordering Instructions
The complete Part Number tells us exactly what assembly you want. For example, let say that you want to order a Mark 3 Adjustable Nozzle Assembly to fit a 1/4” NPT thread with a 65° Flat Spray Nozzle Tip that will deliver 3.5 gpm at 30 psi:
Note: Our Mark 3 nozzle bases have been designed to allow the use of Adjustable Spray Nozzles in applications where standard threaded nozzles may currently be used. They can also be utilized in applications where pipe sizes are smaller than 1" or larger than 2" in diameter, where clip-on nozzles might commonly be used.
