TF-F24 Flat Air Booster Nozzles
Features
• Ultra-compact air nozzle with 24-mm spray width.
• High spray impact and minimal noise level.
• Compact enough to install in a narrow space, such as for blow-off drying in corners.
• Max. allowable temperature: 120º (240ºF)

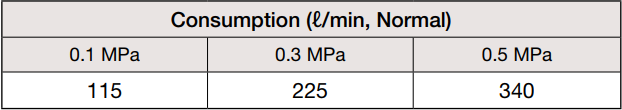

Blowing Power
Applications
• Blowing off dust/paint dust/debris, Blowing off inferior products (rejection of inferior products)
• Cooling: Pinpoint cooling for molded plastic
Industries in which this nozzle is used
• Machinery
• Electronics
• Paper & Pulp
• Printing
• Food
• Automotives
Structure and Materials
Ultra-compact flat air nozzle (24 mm wide, 30 mm long) with orifice diameter of ø1.0 mm.
Material : PPS
Mass : 4 g
Max. air pressure : 0.7 MPa (100 psi)
Max. allowable temperature : 120ºC (240ºF)
